Diamond Saw Blades / QZ-SB-DK01

Diamond Blade For Dekton & Sintered Stone (J-Slot Silent)

Thin-segment blade listed for 3–20mm slabs; verify edge quality and wear in a trial cut on the target material.

QZ codes are site reference IDs for selection, not manufacturer model numbers from the original catalog.

Materials: Sintered Stone / Ceramic & Tile
Working condition: Wet working
Optional core: Silent / sandwich core
Slot profile: Narrow J-Slot for Anti-Chipping

01 / THE TOOL

Tool & application

Catalog Page 5. Specifically engineered for ultra-compact sintered porcelain surfaces (Dekton, Neolith, Laminam). The catalog lists this blade for 3–20mm slabs; confirm slot configuration and cut quality in a trial on the target material.

Matched equipment

5-Axis CNC Bridge Saw
High-Precision Slab Saw
Rail-Guided Edge Saw

Structure & features

Confirm J-slot and silent-core configuration against the drawing; verify chipping on the target slab.
Confirm bond choice and feed speed against the target slab, machine, and trial-cut results.
Engineered across 3mm ultra-thin cladding to 20mm thick countertops.

02 / SPECIFICATIONS

Listed specifications

For preliminary selection. Cross-check dimensions against the source catalog below and confirm full technical documentation before ordering.

#	Diameter	Segment dimensions	Segments	Height
01	12" / 300mm	40 x 2.2 x 10/12mm	21/22	10/12mm
02	14" / 350mm	40 x 2.4 x 10/12mm	25/26 (J-Slot)	10/12mm
03	16" / 400mm	40 x 2.6 x 10/12mm	29	10/12mm

Final dimensions, interfaces and supply specifications are subject to confirmed technical documentation and quotation.

03 / BEFORE YOU START

Customization & use

Customizable scope

Standard 300/350/400mm; bore 50/60mm with drive pins; ultra-thin 2.0mm kerf custom made.

Operating guidance & limits

Flood coolant required. Dress on silicon refractory brick if glazed. Never dry cut.

04 / BUYER QUESTIONS

Selection questions

Is this tool for wet or dry use?: This item is listed for wet use. Confirm machine water delivery and cooling; do not treat it as a dry-cutting tool.
Which sizes are listed?: Listed sizes: 12" / 300mm, 14" / 350mm, 16" / 400mm. Compare with original catalog page 5. Final dimensions and availability depend on confirmed technical documents and quotation.
How should fitment be confirmed?: Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.
What information is needed for customization or a quote?: Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Standard 300/350/400mm; bore 50/60mm with drive pins; ultra-thin 2.0mm kerf custom made. Availability, MOQ, samples, and lead time are confirmed per inquiry.

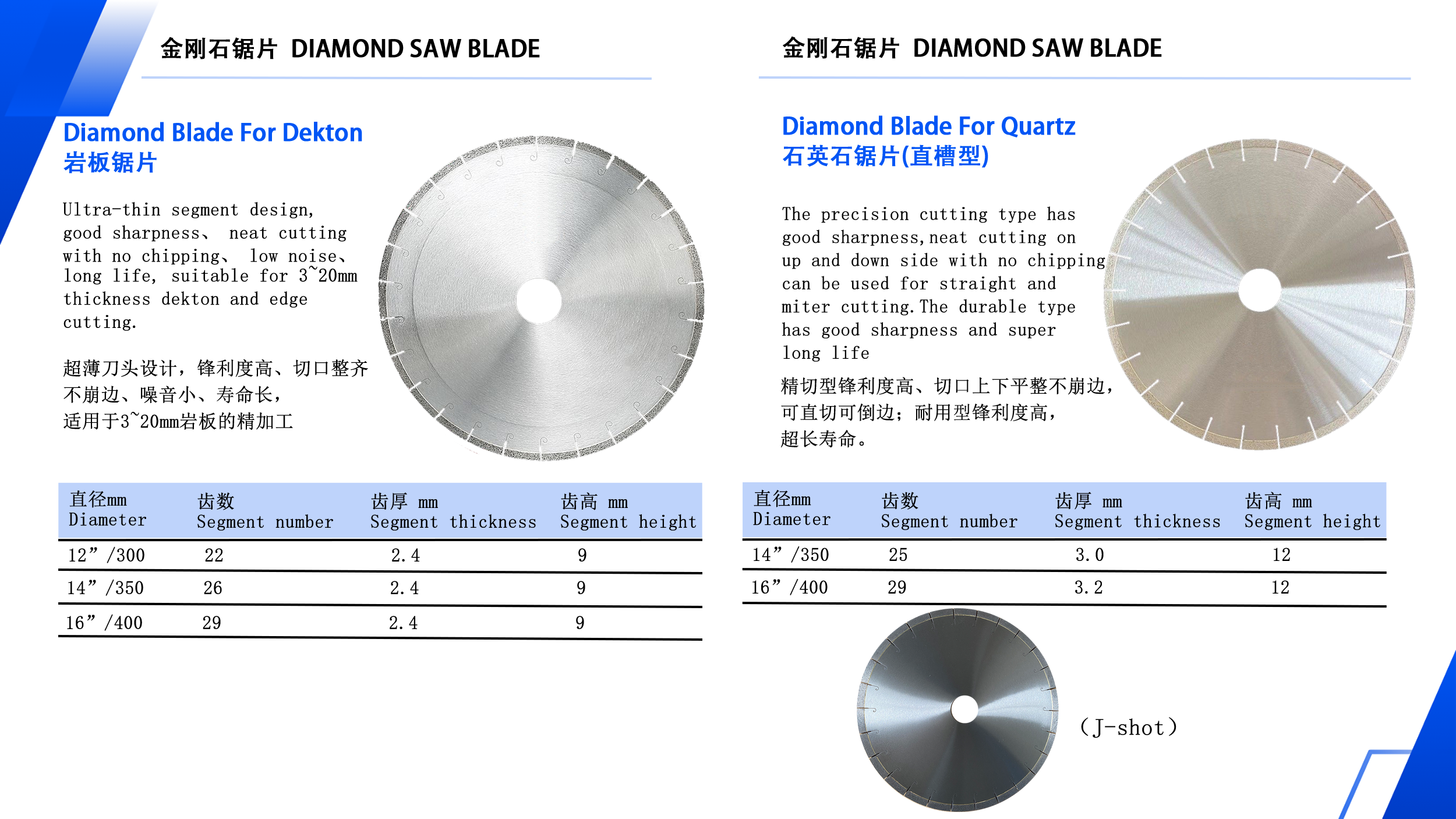

05 / ORIGINAL CATALOG
