03 / MADE FOR YOUR MACHINE

Customization & OEM

Start with your material, machine interface and specifications. Define the dimensions, formulation and sourcing requirements.

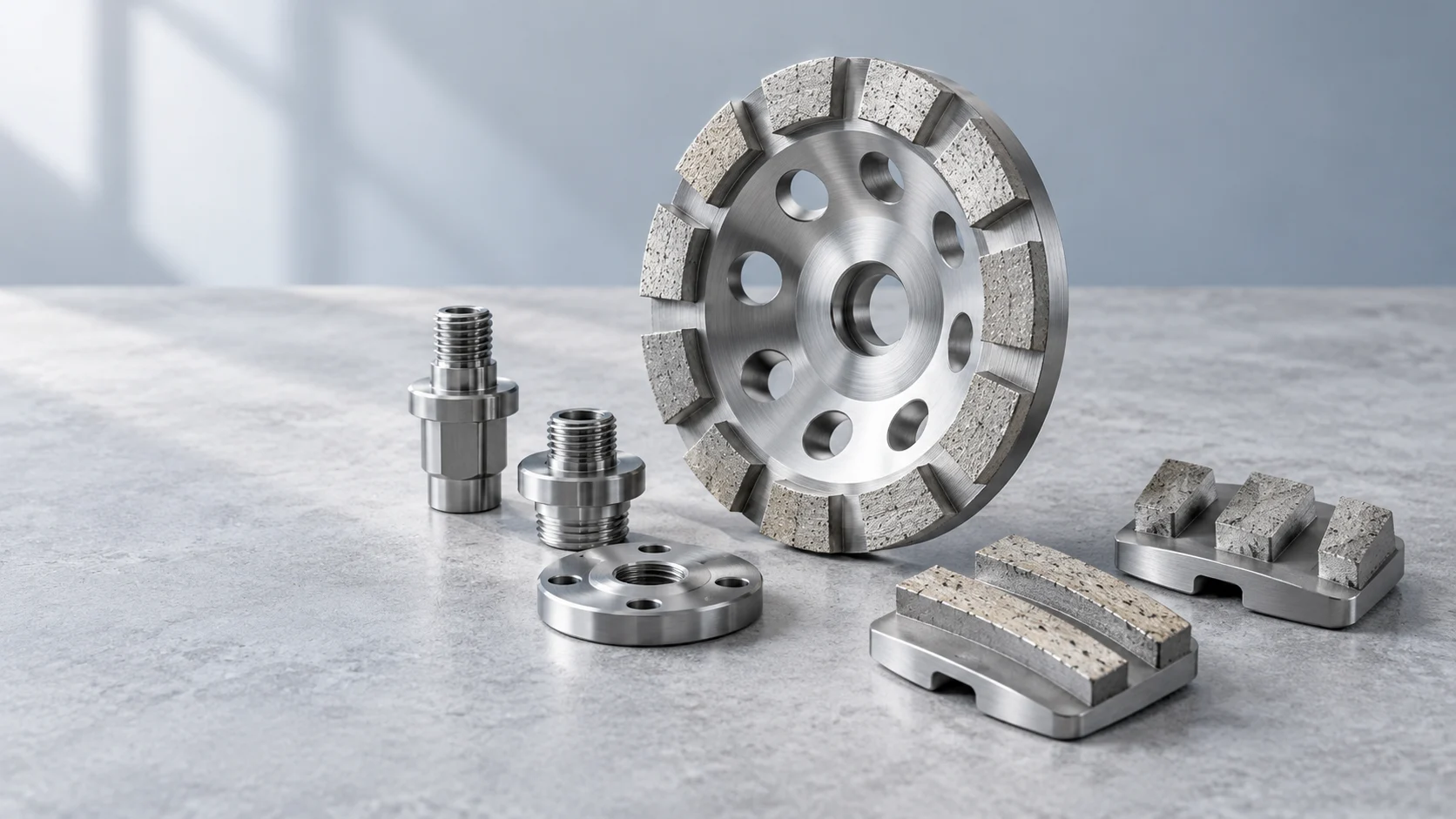

Concept still life of modular grinding tools and interchangeable machine interfacesCONCEPT VISUAL

Scope of Custom Tooling Capabilities

Full technical support across mechanical dimensions, metallurgy, and packaging

Dimensions & Bore Fitment

Non-Standard Diameters, Arbors & Pin Patterns

Blade and wheel diameters are confirmed against the machine drawing and production feasibility. Custom arbors bored to your exact machine spindle specs (22.23mm, 25.4mm, 50mm, 60mm, etc.) with custom drive pin circles and keyways.

Customizable parameters:

Blade outside diameter (per approved drawing)

Arbor Center Bore Diameter & Tolerance (H7)

Drive Pin Count, Pitch Circle Diameter (PCD)

Steel Core Thickness & Silent Sandwich Core Option

Matrix Bond Formula Tuning

Tailored Metallurgy for Target Stones & Floor Aggregates

Stone abrasiveness and concrete aggregate vary dramatically worldwide. We calibrate cobalt, copper, and iron pre-alloy ratios and diamond crystal concentrations to fit your regional stone varieties.

Customizable parameters:

Self-sharpening free-cutting bond for hard quartz granites

Erosion-resistant WC-hard matrix for abrasive sandstones

Extra-Soft matrix for hard densified concrete floors

Copper-based gentle bond for brittle soft marbles

Segment Geometry Modification

Segment Height, Kerf Width, Slots & Undercut Teeth

Engineered segment profiles to optimize cutting speed and kerf width: M-top, W-groove, fan-shaped, stepped teeth, J-slots, keyhole slots, and drop-segment undercutting shields.

Customizable parameters:

Segment Height (10mm / 12mm / 15mm / 20mm)

Segment Thickness (Thin kerf vs Heavy-duty)

Cooling Slot Geometry (Straight / J-slot / Keyhole)

Slanted Protection Teeth (for asphalt and green concrete)

Private Labeling & OEM Packaging

Laser Etching, Silkscreening & Custom Packaging

Comprehensive OEM services for international distributors: high-resolution laser logo etching, barcode markings, custom RAL powder coat colors, private label boxes, and shrink-wrapped pallet packing.

Customizable parameters:

High-contrast fiber laser engraving

Custom retail color box or blister hanging cards

Moisture-proof outer cartons and fumigated pallets

Procurement & Field Trial Verification Workflow

Disciplined loop: parameter verification -> test trial -> volume supply

Submit Cutting Parameters

Clarify target substrate, machine model, spindle power & desired dimensions

Customer provides workpiece details (rock variety/aggregate), machine spindle power, rated RPM, water coolant status, and current machining bottlenecks (chipping, slow feed, short lifespan).

Deliverable:Preliminary Application Review & Recommended Specs

Technical Review & Formula Matching

Review peripheral speed, bond choice, and fitment drawing

Use the supplied RPM and diameter to check peripheral speed, discuss bond and grit options, and confirm diameter, arbor, pin pattern, and segment dimensions before quotation.

Deliverable:Technical Specification Drawing & Pro-Forma Quotation

Sample Trial & Field Testing

Confirm sample quantity and shipping method, then trial on the target machine

Confirm sample quantity, price, lead time, and shipping in the quote. During trial cutting, record material, machine, feed, cut length, and segment wear for review.

Deliverable:Trial Performance Data Sheet & Formula Calibration

Performance Feedback & Tuning

Review trial results and discuss bond changes if needed

If the trial meets agreed targets, confirm specifications in the volume order. Changes to speed or life targets should be reviewed against trial records, formula options, and lead time.

Deliverable:Confirmed product specifications and formula requirements

Volume Production & Global Logistics

Batch acceptance and available Incoterms to be confirmed per order

For volume orders, agree on specifications, sampling, packaging, and trade terms. Production, lead time, and shipping documents follow the confirmed order.

Deliverable:Agreed QC Records & Shipping Documents

Standard Export Packaging & Freight Logistics

Fumigated export pallets, anti-corrosion barrier packaging, and robust container load planning

Diamond Saw Blades (Ø300-400mm)

Inner:Anti-rust paper + Plastic edge protector ring

Carton:10 pcs / Heavy-duty export carton (42×42×15 cm)

Gross Wt:Approx. 24.5 - 26.0 kg / carton

Pallet:36-48 cartons / Fumigated pallet with stretch film

Floor Grinding Shoes & Discs

Inner:9 or 12 pcs / inner box with desiccant

Carton:60-72 pcs / Master carton (38×28×20 cm)

Gross Wt:Approx. 16.5 - 19.0 kg / carton

Pallet:40 cartons / Standard pallet

Diamond Segments

Inner:Heavy-gauge zip bags with formula batch tag

Carton:100-200 sets / carton with foam cushioning

Gross Wt:Approx. 15.0 - 20.0 kg / carton

Pallet:Palletized ocean freight or express air

Core Drill Kits & Grooving Blades

Inner:Reinforced aluminum carrying case or clear tube

Carton:4-6 kits / Master carton

Gross Wt:Approx. 12.0 - 15.0 kg / carton

Pallet:Export pallet with waterproof poly weave

International Ports & Shipping Hubs

Ocean Freight (FCL/LCL): Dispatched via Wuhan Yangluo Port, Shanghai Port, and Shenzhen Port. Air Express: Dispatched directly via Ezhou Huahu International Cargo Airport and Wuhan Tianhe Airport (DHL/FedEx/UPS).

FOB / CIF / CFR / DDP

Commercial Terms, MOQ & Sample Evaluation Program

Minimum Order Quantities (MOQ), sample evaluation fees, production lead times, and payment terms (T/T, L/C) are determined strictly on a case-by-case basis according to specific tooling dimensions. For standard specifications, we support small trial batches for field testing on your machine; sample fees and volume order credits are confirmed in the quotation.
