Is this tool for wet or dry use?

This item is listed for wet use. Confirm machine water delivery and cooling; do not treat it as a dry-cutting tool.

Which sizes are listed?

Listed sizes: 12" / 300mm, 14" / 350mm, 16" / 400mm. Compare with original catalog page 3. Final dimensions and availability depend on confirmed technical documents and quotation.

How should fitment be confirmed?

Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.

What information is needed for customization or a quote?

Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Diameters 300-450mm; bore 50/60mm with drive pins; ultra-thin 2.8mm kerf available. Availability, MOQ, samples, and lead time are confirmed per inquiry.

Diamond Saw Blades / QZ-SB-MB02

Diamond Blade For Marble (Fish-Hook Slot / J-Slot)

Fish-hook slot marble blade for applications where edge chipping is a concern; verify results on the target slab and machine.

QZ codes are site reference IDs for selection, not manufacturer model numbers from the original catalog.

Materials: Marble
Working condition: Wet working
Optional core: Silent / sandwich core
Slot profile: Fish-Hook / Narrow J-Damping Slot

01 / THE TOOL

Tool & application

Catalog Page 3 lists a fish-hook narrow-slot blade as a candidate for marble prone to edge chipping. Verify entry behavior, edge quality, and wear on the target slab.

Matched equipment

5-Axis CNC Bridge Saw
High-Precision Infrared Bridge Saw

Structure & features

Catalog-listed fish-hook slot geometry; compare vibration and noise under the same conditions.
Evaluate cut edge quality and any finishing needs with a trial cut.

02 / SPECIFICATIONS

Listed specifications

For preliminary selection. Cross-check dimensions against the source catalog below and confirm full technical documentation before ordering.

#	Diameter	Segment dimensions	Segments	Height
01	12" / 300mm	40 x 3.0 x 10mm	21	10mm
02	14" / 350mm	40 x 3.0 x 10mm	25	10mm
03	16" / 400mm	40 x 3.2 x 10mm	29	10mm

Final dimensions, interfaces and supply specifications are subject to confirmed technical documentation and quotation.

03 / BEFORE YOU START

Customization & use

Customizable scope

Diameters 300-450mm; bore 50/60mm with drive pins; ultra-thin 2.8mm kerf available.

Operating guidance & limits

Confirm water reaches the cut; adjust entry and exit feed against the slab and machine guidance during a trial cut.

04 / BUYER QUESTIONS

Selection questions

Is this tool for wet or dry use?: This item is listed for wet use. Confirm machine water delivery and cooling; do not treat it as a dry-cutting tool.
Which sizes are listed?: Listed sizes: 12" / 300mm, 14" / 350mm, 16" / 400mm. Compare with original catalog page 3. Final dimensions and availability depend on confirmed technical documents and quotation.
How should fitment be confirmed?: Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.
What information is needed for customization or a quote?: Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Diameters 300-450mm; bore 50/60mm with drive pins; ultra-thin 2.8mm kerf available. Availability, MOQ, samples, and lead time are confirmed per inquiry.

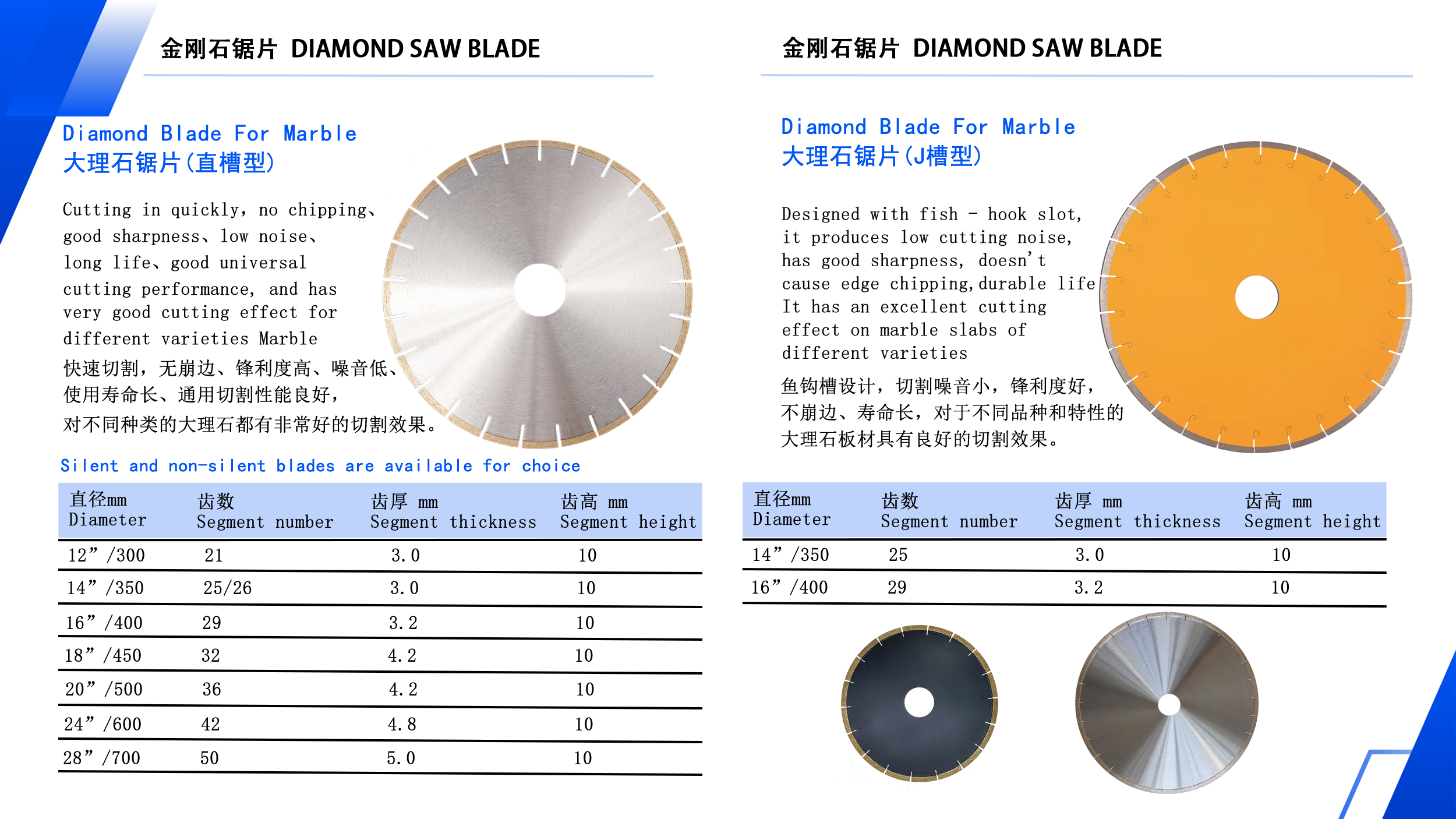

05 / ORIGINAL CATALOG
