Is this tool for wet or dry use?

This item is listed for wet use. Confirm machine water delivery and cooling; do not treat it as a dry-cutting tool.

Which sizes are listed?

Listed sizes: 14" / 350mm, 16" / 400mm, 20" / 500mm, 24" / 600mm. Compare with original catalog page 4. Final dimensions and availability depend on confirmed technical documents and quotation.

How should fitment be confirmed?

Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.

What information is needed for customization or a quote?

Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Segment heights 15mm / 20mm; extra-thick heavy core; matched kerf tolerances for gang blade sets. Availability, MOQ, samples, and lead time are confirmed per inquiry.

Diamond Saw Blades / QZ-SB-GR02

Diamond Blade For Granite (Deep Cut & High-Density Segments)

High-density segment count with 15/20mm ultra-tall segments for deep step-cutting.

QZ codes are site reference IDs for selection, not manufacturer model numbers from the original catalog.

Materials: Granite
Working condition: Wet working
Optional core: Silent / sandwich core
Slot profile: High-Density U-Slots

01 / THE TOOL

Tool & application

Catalog Page 4. High segment density (14" with 34 segs, 16" with 38 segs, 20" with 48 segs, 24" with 58 segs). Segment height 15mm or 20mm. Ideal for multi-blade and block saws.

Matched equipment

Heavy Block Saw
Multi-Blade Gang Saw
Gantry Slabbing Saw

Structure & features

Catalog-listed dense segment spacing; check slab flatness during a trial cut.
Catalog-listed 15–20mm segment height; replacement frequency depends on material and conditions.

02 / SPECIFICATIONS

Listed specifications

For preliminary selection. Cross-check dimensions against the source catalog below and confirm full technical documentation before ordering.

#	Diameter	Segment dimensions	Segments	Height
01	14" / 350mm	40 x 3.2 x 15/20mm	34	15/20mm
02	16" / 400mm	40 x 3.5 x 15/20mm	38	15/20mm
03	20" / 500mm	40 x 4.0 x 15mm	48	15mm
04	24" / 600mm	40 x 4.6 x 15mm	58	15mm

Final dimensions, interfaces and supply specifications are subject to confirmed technical documentation and quotation.

03 / BEFORE YOU START

Customization & use

Customizable scope

Segment heights 15mm / 20mm; extra-thick heavy core; matched kerf tolerances for gang blade sets.

Operating guidance & limits

Confirm block-saw power, blade-rated speed, and cooling; establish step-cut depth through machine guidance and a trial on the target granite.

04 / BUYER QUESTIONS

Selection questions

Is this tool for wet or dry use?: This item is listed for wet use. Confirm machine water delivery and cooling; do not treat it as a dry-cutting tool.
Which sizes are listed?: Listed sizes: 14" / 350mm, 16" / 400mm, 20" / 500mm, 24" / 600mm. Compare with original catalog page 4. Final dimensions and availability depend on confirmed technical documents and quotation.
How should fitment be confirmed?: Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.
What information is needed for customization or a quote?: Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Segment heights 15mm / 20mm; extra-thick heavy core; matched kerf tolerances for gang blade sets. Availability, MOQ, samples, and lead time are confirmed per inquiry.

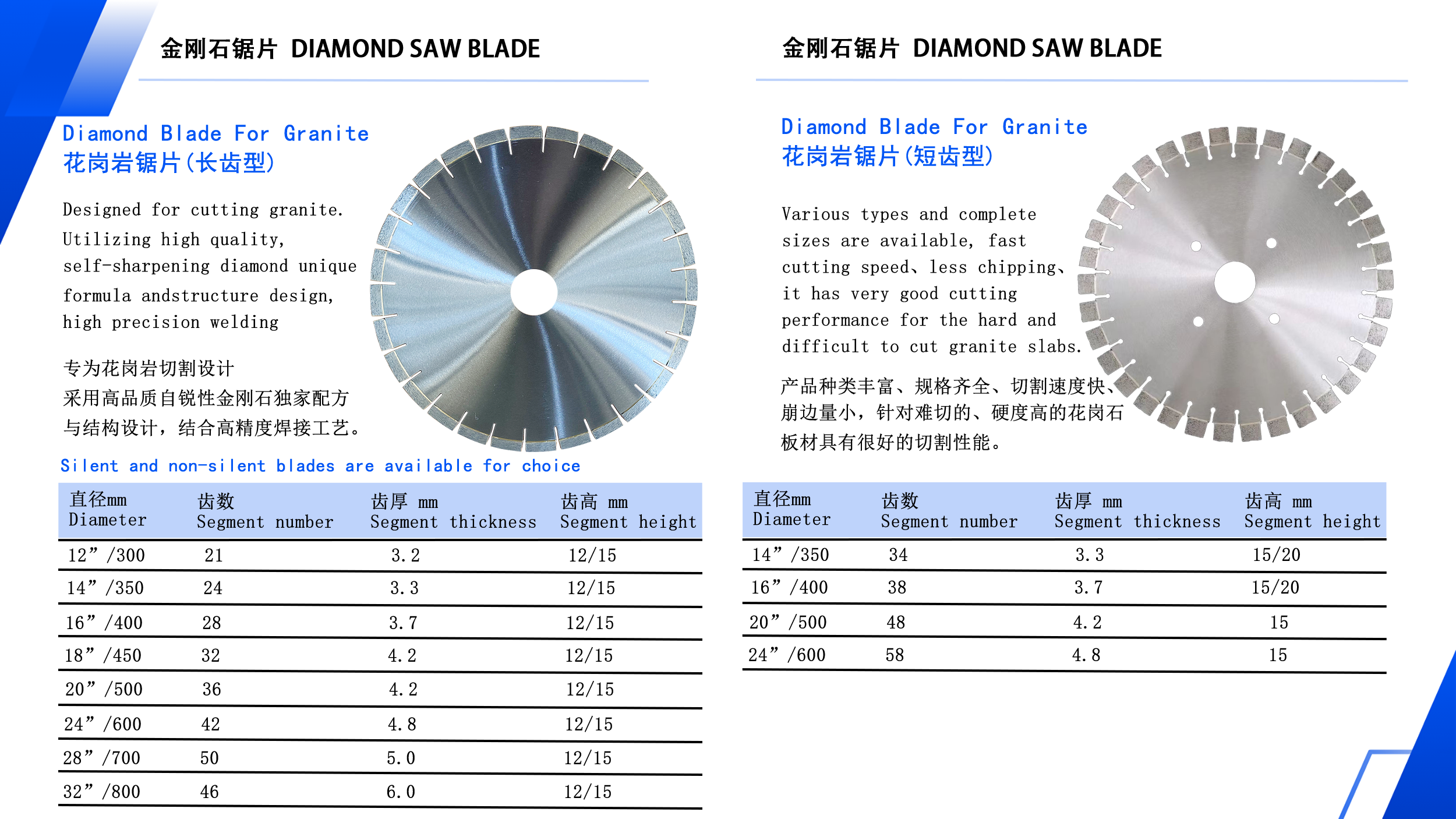

05 / ORIGINAL CATALOG
