Is this tool for wet or dry use?

This item is listed for wet or dry use; confirm the machine, tool markings, and technical documentation for the actual job.

Which sizes are listed?

Listed sizes: 12" / 300mm, 14" / 350mm, 16" / 400mm, 18" / 450mm, 20" / 500mm, 24" / 600mm, 28" / 700mm, 32" / 800mm. Compare with original catalog page 6. Final dimensions and availability depend on confirmed technical documents and quotation.

How should fitment be confirmed?

Listed connections: 25.4 / 50mm, 50mm, 35 / 50mm. Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.

What information is needed for customization or a quote?

Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Diameters 300-800mm; arbor 25.4/35/50mm; drop segments for green concrete optional. Availability, MOQ, samples, and lead time are confirmed per inquiry.

Diamond Saw Blades / QZ-SB-CC01

Diamond Blade For Concrete & Reinforced Concrete

Candidate for concrete and reinforced-concrete cutting; verify cutting rate and wear for the aggregate, rebar, and machine conditions.

QZ codes are site reference IDs for selection, not manufacturer model numbers from the original catalog.

Materials: Concrete & Floors
Working condition: Wet / dry working
Slot profile: Deep U-Slot with Anti-Undercut Protection

01 / THE TOOL

Tool & application

Catalog Page 6. Engineered for rapid slicing of cured and reinforced concrete with embedded rebar. Diameters from 12" to 32" (300-800mm), arbor 25.4mm, 35mm, or 50mm. Segment height 12mm / 15mm for maximum site durability.

Matched equipment

Walk-Behind Road Saw
Floor Saw Cutter
Heavy Floor Grooving Machine

Structure & features

Complete 8-tier size matrix up to 32" / 800mm.
High shear strength braze seams withstand tough rebar encounters.

02 / SPECIFICATIONS

Listed specifications

For preliminary selection. Cross-check dimensions against the source catalog below and confirm full technical documentation before ordering.

#	Diameter	Arbor / bore	Segment dimensions	Segments	Height
01	12" / 300mm	25.4 / 50mm	40 x 3.2 x 12/15mm	22	12/15mm
02	14" / 350mm	25.4 / 50mm	40 x 3.2 x 12/15mm	24/26	12/15mm
03	16" / 400mm	25.4 / 50mm	40 x 3.6 x 12/15mm	28/29	12/15mm
04	18" / 450mm	25.4 / 50mm	40 x 3.8 x 12/15mm	—	12/15mm
05	20" / 500mm	25.4 / 50mm	40 x 4.2 x 12/15mm	—	12/15mm
06	24" / 600mm	25.4 / 50mm	40 x 4.6 x 12/15mm	—	12/15mm
07	28" / 700mm	50mm	40 x 5.0 x 12/15mm	—	12/15mm
08	32" / 800mm	35 / 50mm	40 x 4.8/6.0 x 12/15mm	—	12/15mm

Final dimensions, interfaces and supply specifications are subject to confirmed technical documentation and quotation.

03 / BEFORE YOU START

Customization & use

Customizable scope

Diameters 300-800mm; arbor 25.4/35/50mm; drop segments for green concrete optional.

Operating guidance & limits

Advance machine steadily; multi-pass step cutting required for deep pavement joints.

04 / BUYER QUESTIONS

Selection questions

Is this tool for wet or dry use?: This item is listed for wet or dry use; confirm the machine, tool markings, and technical documentation for the actual job.
Which sizes are listed?: Listed sizes: 12" / 300mm, 14" / 350mm, 16" / 400mm, 18" / 450mm, 20" / 500mm, 24" / 600mm, 28" / 700mm, 32" / 800mm. Compare with original catalog page 6. Final dimensions and availability depend on confirmed technical documents and quotation.
How should fitment be confirmed?: Listed connections: 25.4 / 50mm, 50mm, 35 / 50mm. Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.
What information is needed for customization or a quote?: Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Diameters 300-800mm; arbor 25.4/35/50mm; drop segments for green concrete optional. Availability, MOQ, samples, and lead time are confirmed per inquiry.

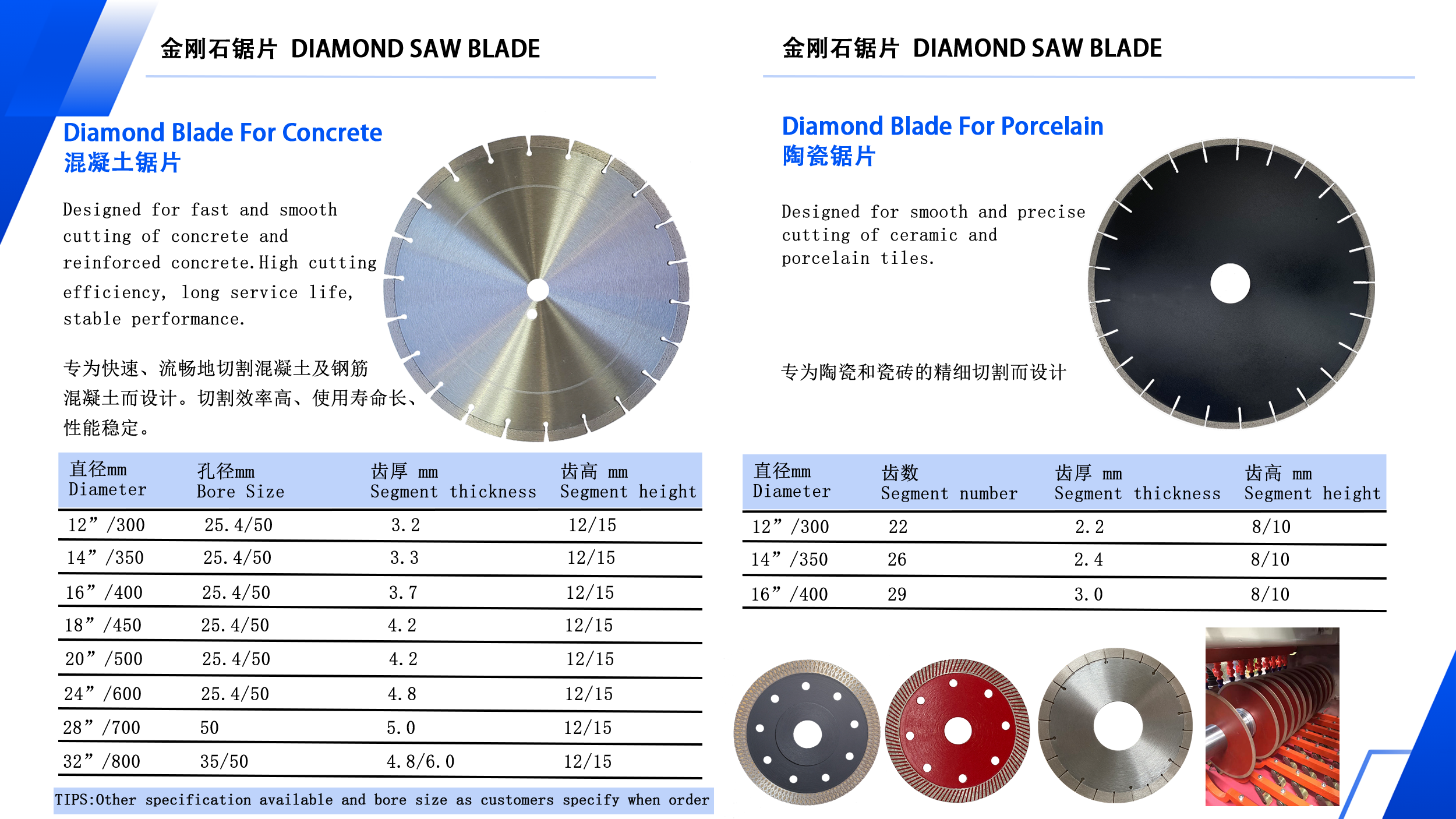

05 / ORIGINAL CATALOG
