Is this tool for wet or dry use?

This item is listed for wet or dry use; confirm the machine, tool markings, and technical documentation for the actual job.

Which sizes are listed?

Listed sizes: 4" / 100mm, 4.3" / 110mm, 4.5" / 115mm, 5" / 125mm, 6" / 150mm, 7" / 180mm, 8" / 200mm, 9" / 230mm. Compare with original catalog page 8. Final dimensions and availability depend on confirmed technical documents and quotation.

How should fitment be confirmed?

Listed connections: 20 / 22.23mm, 22.23 / 25.4mm. Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.

What information is needed for customization or a quote?

Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Complete 8 sizes from 100mm to 230mm; integrated M14 or 5/8"-11 flanges available. Availability, MOQ, samples, and lead time are confirmed per inquiry.

Diamond Saw Blades / QZ-HP-TB01

Hot-Pressed Protected Diamond Saw Blade

Continuous turbo rim with deep slanted protection teeth for granite, concrete, and field stone.

QZ codes are site reference IDs for selection, not manufacturer model numbers from the original catalog.

Materials: Granite / Concrete & Floors / Marble
Working condition: Wet / dry working
Slot profile: Turbo Rim with Slanted Side Protection Teeth

01 / THE TOOL

Tool & application

Catalog Page 8. Application: Granite, Concrete, Field Stone. Features hot-pressed turbo rim plus slanted protective teeth on core flanks to guard against undercutting. Diameters from 4" to 9" (100-230mm), arbor 20/22.23/25.4mm and M14 flange.

Matched equipment

Angle Grinder
Marble Hand Cutter
Circular Saw

Structure & features

Full catalog size chart: 100, 110, 115, 125, 150, 180, 200, 230mm.
Check pinching and core wear during a trial with the side-protection teeth.

02 / SPECIFICATIONS

Listed specifications

For preliminary selection. Cross-check dimensions against the source catalog below and confirm full technical documentation before ordering.

#	Diameter	Arbor / bore	Segment dimensions
01	4" / 100mm	20 / 22.23mm	2.0 x 7/10mm 齿厚x齿高
02	4.3" / 110mm	20 / 22.23mm	2.0 x 7/10mm 齿厚x齿高
03	4.5" / 115mm	20 / 22.23mm	2.0 x 7/10mm 齿厚x齿高
04	5" / 125mm	20 / 22.23mm	2.0 x 7/10mm 齿厚x齿高
05	6" / 150mm	22.23 / 25.4mm	2.2 x 7/10mm 齿厚x齿高
06	7" / 180mm	22.23 / 25.4mm	2.4 x 7/10mm 齿厚x齿高
07	8" / 200mm	22.23 / 25.4mm	2.4 x 7/10mm 齿厚x齿高
08	9" / 230mm	22.23 / 25.4mm	2.8 x 7/10mm 齿厚x齿高

Final dimensions, interfaces and supply specifications are subject to confirmed technical documentation and quotation.

03 / BEFORE YOU START

Customization & use

Customizable scope

Complete 8 sizes from 100mm to 230mm; integrated M14 or 5/8"-11 flanges available.

Operating guidance & limits

Allow brief idle rotation for air cooling during dry cuts; wear dust mask.

04 / BUYER QUESTIONS

Selection questions

Is this tool for wet or dry use?: This item is listed for wet or dry use; confirm the machine, tool markings, and technical documentation for the actual job.
Which sizes are listed?: Listed sizes: 4" / 100mm, 4.3" / 110mm, 4.5" / 115mm, 5" / 125mm, 6" / 150mm, 7" / 180mm, 8" / 200mm, 9" / 230mm. Compare with original catalog page 8. Final dimensions and availability depend on confirmed technical documents and quotation.
How should fitment be confirmed?: Listed connections: 20 / 22.23mm, 22.23 / 25.4mm. Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.
What information is needed for customization or a quote?: Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Complete 8 sizes from 100mm to 230mm; integrated M14 or 5/8"-11 flanges available. Availability, MOQ, samples, and lead time are confirmed per inquiry.

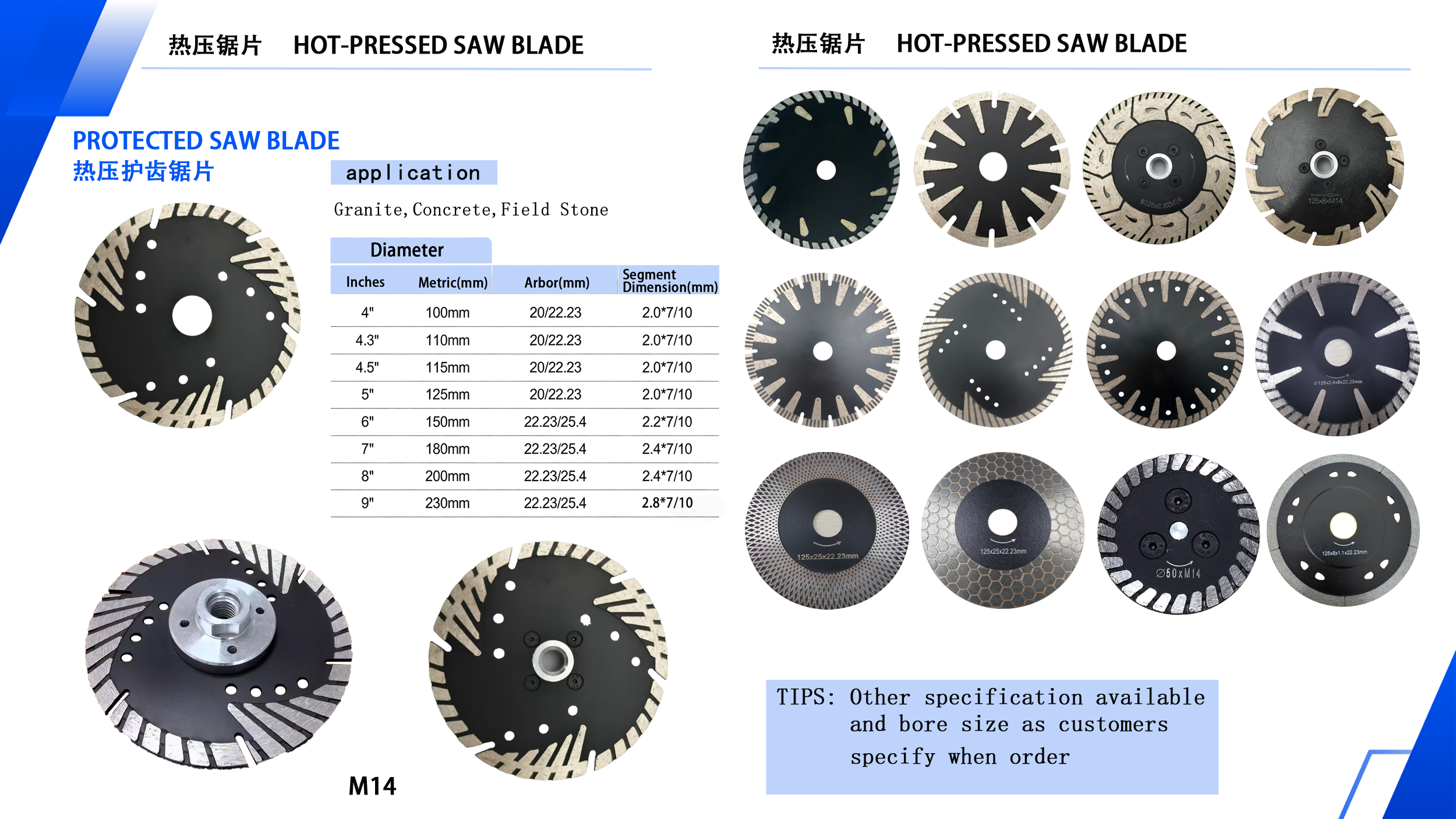

05 / ORIGINAL CATALOG
