Is this tool for wet or dry use?

This item is listed for wet or dry use; confirm the machine, tool markings, and technical documentation for the actual job.

Which sizes are listed?

Listed sizes: 4" / 100mm, 4.5" / 115mm, 5" / 125mm, 6" / 150mm, 7" / 180mm. Compare with original catalog page 10. Final dimensions and availability depend on confirmed technical documents and quotation.

How should fitment be confirmed?

Listed connections: 20 / 22.23mm, M14法兰可选. Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.

What information is needed for customization or a quote?

Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Sizes 100-180mm; flush mount M14 or 5/8"-11 flange; single or double-sided plating. Availability, MOQ, samples, and lead time are confirmed per inquiry.

Brazed & Electroplated Tools / QZ-EP-SB01

Electroplated Diamond Saw Blade

Application: Marble, Ceramic, Glass. Sizes 100mm to 180mm with 20/22.23mm arbor or M14 flange.

QZ codes are site reference IDs for selection, not manufacturer model numbers from the original catalog.

Materials: Marble / Ceramic & Tile
Working condition: Wet / dry working

01 / THE TOOL

Tool & application

Catalog Page 10. Application: Marble, Ceramic. Produced via electrolytic nickel deposition. Single-layer dense diamond distribution provides instantaneous peak sharpness with minimal kerf loss. Diameters: 100, 115, 125, 150, 180mm.

Matched equipment

Angle Grinder
Precision Table Saw
Glass/Marble Edge Trimmer

Structure & features

Instant sharpness without break-in cycle.
Narrow kerf minimizes waste on valuable fragile stones.

02 / SPECIFICATIONS

Listed specifications

For preliminary selection. Cross-check dimensions against the source catalog below and confirm full technical documentation before ordering.

#	Diameter	Arbor / bore	Connection
01	4" / 100mm	20 / 22.23mm	M14法兰可选
02	4.5" / 115mm	20 / 22.23mm	M14法兰可选
03	5" / 125mm	20 / 22.23mm	M14法兰可选
04	6" / 150mm	20 / 22.23mm	M14法兰可选
05	7" / 180mm	20 / 22.23mm	M14法兰可选

Final dimensions, interfaces and supply specifications are subject to confirmed technical documentation and quotation.

03 / BEFORE YOU START

Customization & use

Customizable scope

Sizes 100-180mm; flush mount M14 or 5/8"-11 flange; single or double-sided plating.

Operating guidance & limits

Avoid lateral shock to preserve nickel bond; water coolant prolongs life.

04 / BUYER QUESTIONS

Selection questions

Is this tool for wet or dry use?: This item is listed for wet or dry use; confirm the machine, tool markings, and technical documentation for the actual job.
Which sizes are listed?: Listed sizes: 4" / 100mm, 4.5" / 115mm, 5" / 125mm, 6" / 150mm, 7" / 180mm. Compare with original catalog page 10. Final dimensions and availability depend on confirmed technical documents and quotation.
How should fitment be confirmed?: Listed connections: 20 / 22.23mm, M14法兰可选. Provide machine model, arbor or connection dimensions, pin-hole drawing, and permitted RPM. Confirm fitment against the agreed drawing.
What information is needed for customization or a quote?: Share the material, machine, target dimensions, wet/dry conditions, estimated quantity, and current issue. Customization scope: Sizes 100-180mm; flush mount M14 or 5/8"-11 flange; single or double-sided plating. Availability, MOQ, samples, and lead time are confirmed per inquiry.

05 / ORIGINAL CATALOG

Catalog source

Source: Hubei Qianzhao Diamond Tools Co., Ltd. original catalog, page 10. ADAMA CUT is its overseas business brand.

Open source catalog PDF

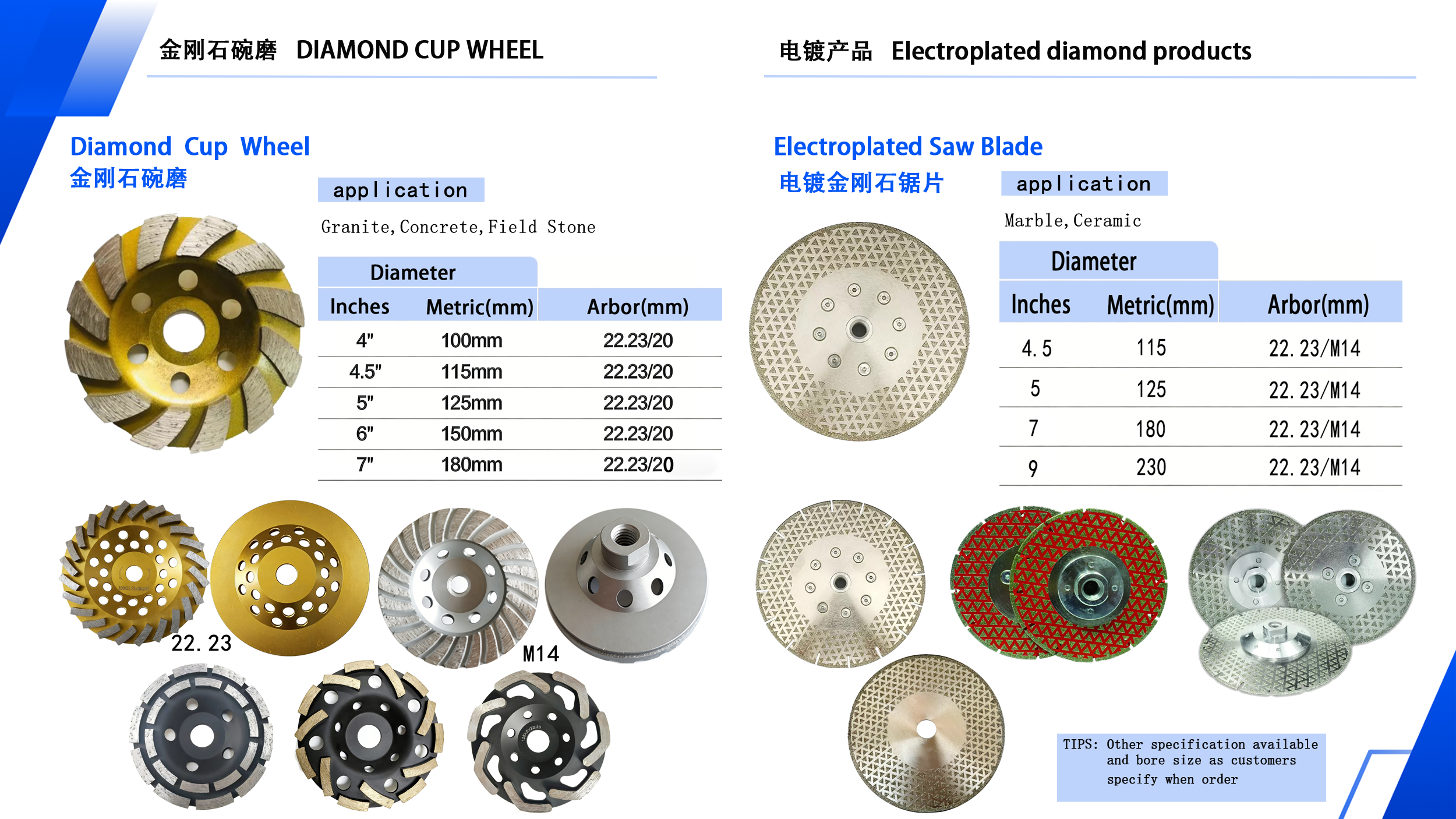

View original scan — page 10

Hubei Qianzhao Diamond Tools source catalog page 10
